Description
Triple Grouser Track Shoes for Heavy Equipment
Available Models:
- Triple Grouser Track Shoes / Triple Bar Shoes / Excavator Shoes
Applications:
Ideal for use in construction, agriculture, and mining industries.
Key Benefits:
- Stable operating platform with enhanced maneuverability
- Good flotation and moderate traction for versatile performance
- Mud holes to prevent material buildup in track chains
- Fully hardened and tempered for maximum durability and reduced wear
- Comprehensive solutions with a wide range of dimensions and link pitches up to 228mm
- Custom sizes and grades tailored to meet specific requirements, from ironmaking to steel production
Compatible Brands & Models:
Our triple grouser track shoes are designed to fit a wide range of equipment, including:
- Caterpillar: CAT330, CAT320, CAT235
- Komatsu: PC400, PC300, PC200, PC100, PC60
- Hitachi: EX300, EX200, EX210, EX220
- Daewoo, Doosan, John Deere, Kobelco, Hyundai, Liebherr, Sumitomo, Volvo, and more
We offer high-quality track shoes engineered for superior performance, durability, and efficiency in demanding environments.
|
Triple Grouser |
||||
|
Link Pitch |
Thickness |
Width |
Grouser Height |
Machine Model |
|
135 |
6 |
154 |
14 |
PC40-7, PC60 |
|
140 |
8.5 |
163 |
18 |
FL4 |
|
154 |
6 |
165 |
20 |
PC70, EX60LC |
|
171 |
8/8.5/9.5/10/12 |
198.9 |
25 |
EX100, EX120, 953, CAT312 |
|
190 |
8/8.5/10/12 |
219 |
26 |
PC200, SK200, EC210 , CAT320 |
|
203 |
11/13 |
28 |
236 |
PC300, SK300, EC300, CAT325 |
|
216 |
11/13/14/16/18 |
247 |
30/36 |
PC400, ZX460, CAT330 |
|

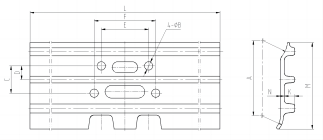

Main Technical Data of Track Shoes |
|
.png) |
Technical specifications (for reference only) |
| Surface Hardness:HB392-474(HRC42-49)
Tensile:1372Mpa min.
Yield Strength:1176Mpa min.
Elongation:10%min. |
|
| S/N | Main Dimensions(mm) (for reference only) | Machine Model | ||||||||
| A | B | C | E | F | K | L | M | N | ||
| 1 | 135 | 12.5 | 43.4 | 72 | 99 | 14 | 400 | 154 | 6 | PC60-3-5, S50, D20; Sumitomo 65(rubber hole φ14) |
| 2 | 135 | 13.2 | 43.4 | 72 | 99 | 14 | 400 | 154 | 6 | PC60-3-5 |
| 3 | 135 | 12.5 | 46 | 64 | 94 | 14 | 400 | 154 | 6 | PC40-7; PC45; PC50-7/8; SK40(rubber hole φ14) |
| 4 | 154 | 14.25 | 57 | 73 | 89 | 20 | 450 | 165 | 6/8 | PC60-6 |
| 5 | 154 | 14.3 | 55 | 90 | 90 | 20 | 450 | 165 | 6/8 | EX60 |
| 6 | 171.5 | 16.2 | 60.4 | 108 | 108 | 20 | 500 | 190 | 8/9.5 | EX100 |
| 7 | 171.5 | 16.3 | 57 | 86.4 | 102.4 | 20 | 500 | 190 | 8/9.5 | PC120; PC100 |
| 8 | 170.7 | 16.21 | 60.4 | 108 | 108 | 25 | 600 | 198.9 | 8/8.5/9.5/10 | EX100-1/2/3/5; EX120-1/3; DH120 |
| 9 | 170.7 | 16.5 | 58.9 | 125.4 | 144.5 | 25 | 600 | 198.9 | 8/8.5/9.5/10 | Hyundai210 |
| 10 | 187.9 | 20.5 | 62 | 124.4 | 160.4 | 26 | 600 | 217.5 | 10 | PC200 |
| 11 | 190 | 20.5 | 62 | 124.4 | 160.4 | 26 | 600 | 219 | 8.5/10/12 | PC200-5/6/7; PC220; PC230; DH220; S220; |
| 12 | 190 | 18.5 | 62 | 124.4 | 160.4 | 26 | 600 | 219 | 8.5/10/12 | Hitachi EX200-2/5, EX210; PC200-2/3; ZAX230; EX220 |
| 13 | 190 | 21 | 69 | 120 | 156 | 26 | 600 | 219 | 8.5/10/12 | CAT320; E200B; EL200B; E320C; Kobelco SK200; Sumitomo 200; Sumitomo340, SH200, SK230 |
| 14 | 203 | 20.5 | 72.2 | 138.4 | 178.4 | 28 | 600 | 236 | 11/13 | PC300-5/1/3; DH280, DH320; VOLVO290; EX300-3 |
| 15 | 203 | 20.5 | 76.2 | 146 | 184 | 28 | 600 | 236 | 11/13 | Hyundai 450 |
| 16 | 203 | 21 | 72 | 129 | 179 | 28 | 600 | 236 | 11/13 | CAT325; E325ST; SK300 |
| 17 | 216 | 22.5 | 76.2 | 140.4 | 178.4 | 30; 36 | 600 | 247 | 11/14; 13/16/18 | PC300-6, PC270-7; EX300-5, EX350LC-5; ZAX330/350 |
| 18 | 216 | 23 | 76.2 | 146 | 184 | 30; 36 | 600 | 247 | 11/14; 13/16/18 | EC360BLC; EC460; PC300HD; PC400; EX400; |
| 19 | 216 | 24.6 | 76.2 | 146 | 184 | 30; 36 | 600 | 247 | 11/14; 13/16/18 | PC400-5/6 |
| 20 | 216 | 23 | 76.2 | 140 | 190 | 30; 36 | 600 | 247 | 11/14; 13/16/18 | CAT 235-7; E330; SK300; SK400 |
| 21 | 216 | 24.6 | 76.2 | 144 | 184 | 30; 36 | 600 | 247 | 11/14; 13/16/18 | PC400-6 |
