Description

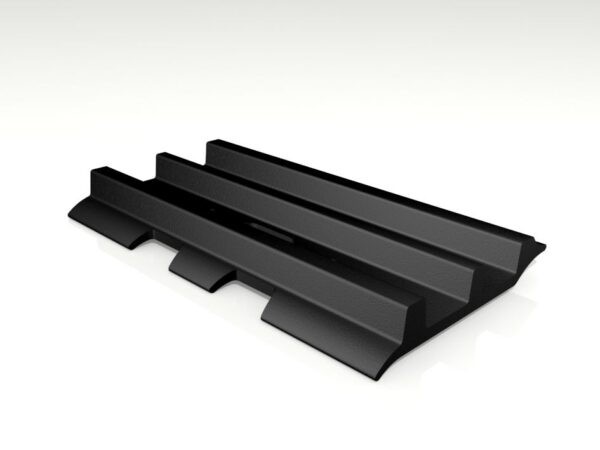

Bulldozer Track Shoes & Undercarriage Parts
Designed for bulldozers operating in rocky ground conditions, ensuring durability and high performance.
Ideal for jumbo-sized bulldozers (over 240mm pitch length), including:
- Caterpillar: D9, D10, D11
- Komatsu: D155, D375, D475
Key Benefits:
- Thicker and stronger grouser and plate for enhanced structural integrity
- Increased bending modulus for superior strength and durability
- High wear resistance for extended service life in demanding environments
Our bulldozer track shoes are engineered to withstand the toughest terrains, delivering reliability and performance for heavy-duty applications.
|
Main Technical Data of Track Shoes |
|
 |
Technical specifications (for reference only) |
| Surface Hardness: HB392-474(HRC42-49)
Tensile: 1372Mpa min. Yield Strength: 1176Mpa min. Eongation: 10% min. Sharpy Impact: 68.6J min. |
|
| S/N | Main Dimensions(mm)(for reference only) | Machine Model | ||||||||
| A | B | C | E | F | K | L | M | N | ||
| 1 | 240 | 26.3 | 74.5 | 170 | 230 | 84 | 610 | 285 | 20 | CAT D9N/R/T, Liebherr PR764 |
| 2 | 260.5 | 30 | 80 | 190 | 250 | 89.7 | 610 | 303 | 20.5 | CAT D10N/R/T, Extreme Service |
| 3 | 260.5 | 27.5 | 76.2 | 184.2 | 235 | 89.7 | 610 | 303 | 20.5 | Komatsu D275/D355, Extreme Service |
| 4 | 260.35 | 30 | 80 | 190 | 250 | 100 | 610 | 299 | 23 | CAT D10N/R/T, Super Extreme Service |
| 5 | 260.35 | 27.5 | 76.2 | 184.2 | 235 | 100 | 610 | 299 | 23 | Komatsu D275/D355, Super Extreme Service |
| 6 | 280 | 31 | 82.5 | 184 | 253.4 | 93 | 610 | 322 | 23 | Komatsu D375, Extreme Service |
| 7 | 317.5 | 35.8 | 94 | 225.5 | 291.5 | 102 | 710 | 369 | 25 | CAT D11N/R/T, Extreme Service |
| 8 | 317.5 | 33.8 | 96 | 222 | 288 | 102 | 710 | 369 | 25 | Komatsu D475, Extreme Service |
| 9 | 317.5 | 35.8 | 94 | 225.5 | 291.5 | 103 | 710 | 366 | 28 | CAT D11N/R/T, Super Extreme Service |
| 10 | 317.5 | 33.8 | 96 | 222 | 288 | 102 | 710 | 366 | 28 | Komatsu D475, Super Extreme Service |
